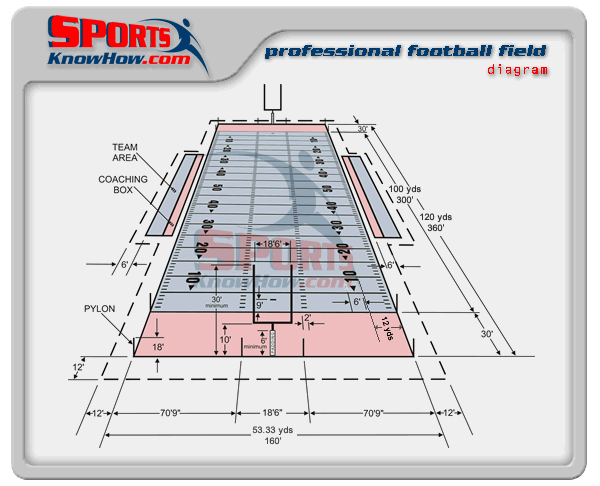

Professional (NFL) Football Field Dimension Diagram

football-nfl-field-dimension-diagram-lrg

icon_printPrint this diagram(PDF)

tittle-football-field-nfl-dimensions

Football Field Dimensions – NFL/Professional

The dimensions of a regulation NFL football field are listed below

Overall Dimensions

All football fields share the same overall outside dimensions. The outside measurements below include the End Zone. High School, College and the NFL all have overall outside dimensions of:

Length: 360 feet or 120 yards

Width: 160 feet or 53 1/3 yards

End Zone:
NFL enzones are10 yard deep. This measurement is shared by all levels of american play.

End Line:
A six foot end line border marks the back of the end zone.

Team Benches:
Team benches are placed along the Restraining Line between the 30 yard markers

Field Numbers:
NFL field numbers are 6 feet high and 4 feet wide.

Restraining Line:
NFL fields have a 6’ line along the side lines that designate the closest non-players can be to the field.

Hash Marks:
NFL Hash marks are the narrowest of all the levels of football play. They measure 70 feet, 9 inches from the sidelines and are 18 feet, 6 inches wide. (same as the width of the goal posts)

High School: the width of the hashmarks are 53 feet, 4 inches
College: hashmarks are 40 feet wide

Goal Posts:
As mentioned before, NFL goal posts are 10 feet high and 18 feet, 6 inches wide (same as NCAA)

High School: Goal posts by contrast are 10 feet high and 23 feet, 4 inches wide.
